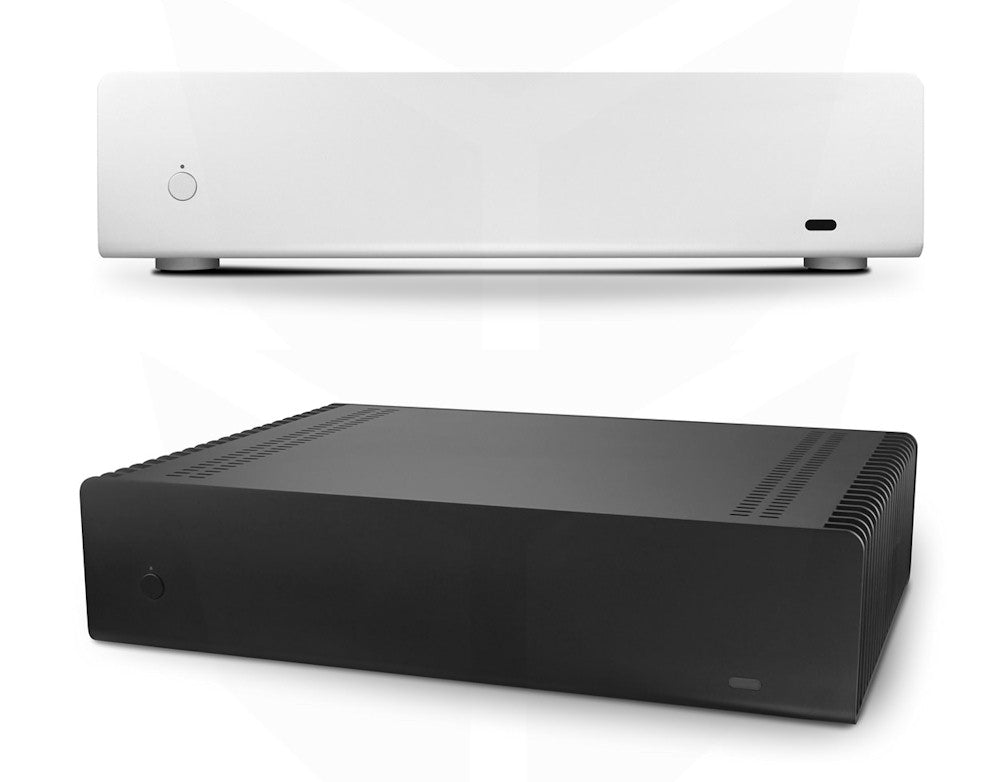

Streacom FC10 Alpha Fanless Chassis ST-FC10

Includes Ground shipping for most US locations

Available in (4) different configuartions.

• Silver, Extruded Aluminum, without Optical Slot # ST-FC10S ALPHA
• Black, Extruded Aluminium, without Optical slot # ST-FC10B ALPHA
• Silver, Extruded Aluminium, with Optical slot # ST-FC10S ALPHA OPT
• Black, Extruded Aluminium, with Optical slot # ST-FC10B ALPHA OPT

Its not easy to improve on the stunning design of the original FC10, so we didn’t, instead we focused on the performance and tweaked the finish of its beautiful exterior.

Internal airflow has been optimized with a revised bottom panel layout and drive tray, both of which also allow for more drives and the use of our new optical drive tray.
The expansion slots have been adjusted to accommodate dual slot cards and USB ports are now located on both side panels for easier access and balance.

As with all Alpha cases, we have improved manufacturing tolerances, introduced a new refined sandblast finish, USB3.0 is native, the power LED is now a subtle pure white, the heatpipes and mounts have been uprated, and its available with and without an optical drive opening.

What is true of the original FC10 can be said for the FC10 Alpha, its a work of art that beautiful combines form and function.

Chassis Material: Premium Grade (6063) All Aluminium, 4mm Thick Extruded Panels
Available Colours: Silver / Black – Sandblast Finish
Motherboard Support： Mini-ITX, Micro-ATX and Full Size ATX
*1 Drive Capacity: Minimum 2 x 3.5″ + 3 x 2.5″, Maximum 5 x 3.5″ + 4 x 2.5″
Optical Drive Bays: 1 x Slim 12.7mm Slot Loading Drive (Optical Version Only)
Expansion Slot: 2 x Full Height Slots (300mm Upper, 190mm Lower Slot, Flexible Riser Required)
USB Ports: 2 x USB3.0, Left & Right Side, 19/20 PIN
*2 Cooling: Heatpipe Direct Touch 4 Pipes – Recommended CPU TDP 65W, Max TDP 95W
External Dimensions: 435 x 319 x 100mm (W x D x H, 109mm including feet)
Internal Dimensions: 380 x 310 x 93mm (W x D x H)
Power Supply: ZF240 or Nano Series PSU (Not Included)
Remote Control: FLirc or IRRC Solutions (Not Included)

*1 Depending on hardware configuration, i.e. motherboard size
*2 As with any passive cooling solution, environmental conditions will have an impact on the performance. A TDP of 95W is only recommended when the chassis is placed in a location with adequate air flow and moderate ambient room temperature
